4302.2143 | SCHURTER
Plug C14, 3 pole, snap-in, plug-in connection, black, 4302.2143
Unit Price (€ / pc.)
11.1622 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Plug, 4302.2143, SCHURTER

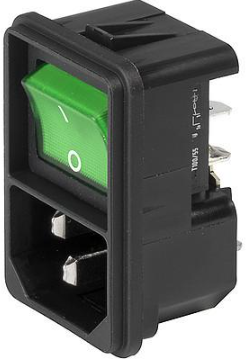

IEC Appliance inlet C14 with line switch 2-pole.
Features
- 2 Functions
- Quick connect terminals
- All single elements are already wired
- Housing material: Thermoplastic, black, UL 94V-0
- Protection class: 1
Technical specifications
| Switch illuminated | Yes | |
| Colour | black | |
| Number of poles switch | 2 pole | |
| Pin temperature | 70 °C | |
| Type of locking | No | |
| Rated current UL/CSA | 15 A | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated voltage IEC | 250 V | |
| IEC designation | C14 | |
| Fuse holder present | No | |
| Panel thickness | 2 mm | |
| Pin number | 3 pole | |
| Version | plug | |
| Design | straight | |
| Power switch available | Yes | |
| Connection | plug-in connection | |
| Swich colour | green | |
| Line filter present | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
