3-144-646 | SCHURTER

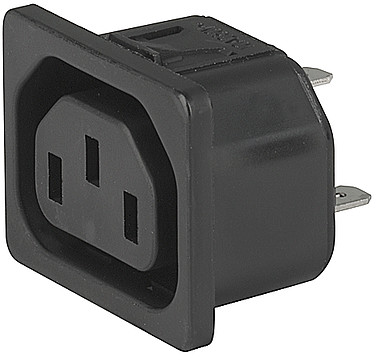

Built-in appliance socket F, 3 pole, snap-in, solder connection, black, 3-144-646
Order No.: 41F1086
EAN: 4099891579937
MPN:
3-144-646
6600-4111-00201-101-00
Series: Green Line 6600-4
Unit Price (€ / pc.)
1.4994 € *
Available: 50 pcs.
Leadtime: 2 Weeks **
Appliance socket outlet, 3-144-646, SCHURTER
IEC Appliance outlet F, Snap-in mounting, Front side, Solder terminal suitable for appliances with protection class I acc. to IEC 61140.
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Design | straight | |
| Colour | black | |
| IEC designation | F | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 2 mm | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
