3-144-643 | SCHURTER
Panel socket F, 3 pole, snap-in, plug-in connector 6.3 x 0.8, black, 3-144-643
Order No.: 41F1083
EAN: 4099891579906
MPN:
3-144-643
6600-4333-00151-101-00
Series: Green Line 6600-4
Unit Price (€ / pc.)
2.1063 € *
Available: 48 pcs.
Total Price:
2.11 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1063 €
10 pcs.
1.9397 €
50 pcs.
1.7612 €
100 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale

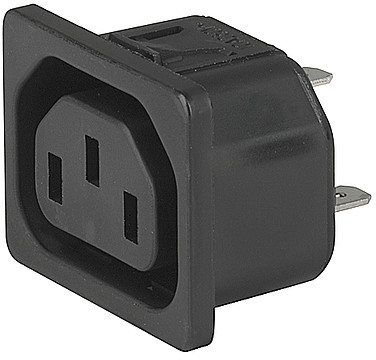

Appliance socket outlet, 3-144-643, SCHURTER
IEC Appliance outlet F, Snap-in mounting, Front side, Quick-connect terminal suitable for appliances with protection class I acc. to IEC 61140.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | snap-in | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 15 A | |
| Panel thickness | 1.5 mm | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | black | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | panel socket | |
| Line filter present | No | |
| IEC designation | F | |
| Rated current IEC | 10 A | |
| Type of locking | No | |
| Connection | plug-in connector 6.3 x 0.8 | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
