3-144-634 | SCHURTER

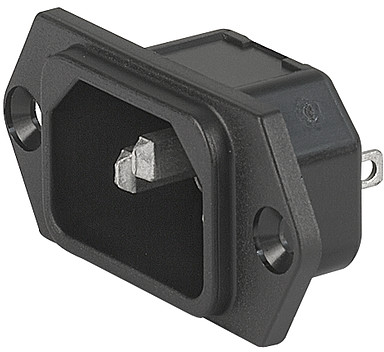

Panel plug C14, 3 pole, screw mounting, plug-in connector 4.8 x 0.8, black, 3-144-634
Unit Price (€ / pc.)
0.9639 € *
Available: 94 pcs.
Leadtime: 2 Weeks **
Panel plug C14, 3-144-634, SCHURTER
IEC Appliance Inlet C14, Screw-on mounting, Quick-connect terminal suitable for appliances with protection class I acc. to IEC 61140.
Technical specifications
| Connection | plug-in connector 4.8 x 0.8 | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| IEC designation | C14 | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
