3-144-632 | SCHURTER

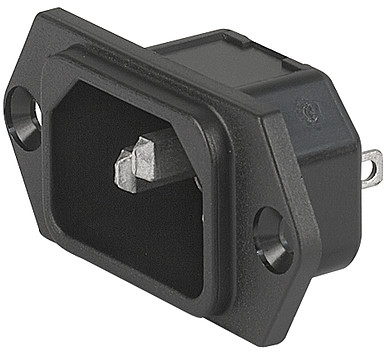

Panel plug C14, 3 pole, screw mounting, plug-in connector 6.3 x 0.8, black, 3-144-632
Unit Price (€ / pc.)
   1.4042 €  *
   Available: 90 pcs.
 Total Price:
  1.40 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 1.4042 €
 10 pcs.
 1.2852 €
 50 pcs.
 1.1781 €
 100 pcs.
 1.0591 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Panel plug C14, 3-144-632, SCHURTER
IEC Appliance Inlet C14, Screw-on mounting, Quick-connect terminal suitable for appliances with protection class I acc. to IEC 61140.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Power switch available | No | |
| Colour | black | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 15 A | |
| Fuse holder present | No | |
| Design | straight | |
| IEC designation | C14 | |
| Connection | plug-in connector 6.3 x 0.8 | |
| Switch illuminated | No | |
| Product type | panel plug | |
| Pin number | 3 pole | |
| Type of locking | No | |
| Rated current IEC | 10 A | |
| Line filter present | No |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
