3-137-731 | SCHURTER

Panel plug C14, 3 pole, screw mounting, plug-in connection, black, 3-137-731

Order No.: 41F1224
EAN: 4099891580322
MPN:
3-137-731
Series: 6080

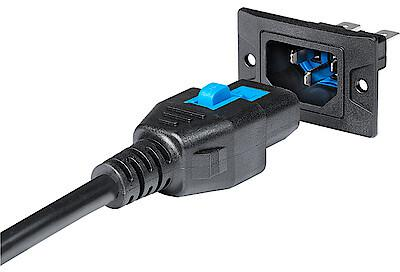

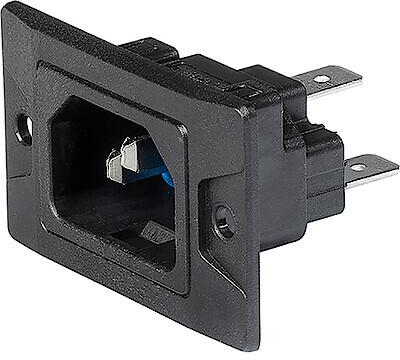

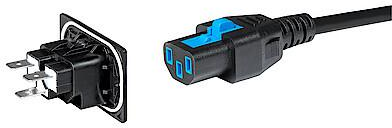

3-137-731 SCHURTER Device Connectors Image 1
3-137-731 SCHURTER Device Connectors Image 2
3-137-731 SCHURTER Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
3.1654 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3.17 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1654 €
10 pcs.
2.9393 €
50 pcs.
2.6894 €
100 pcs.
2.4395 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug C14, 3-137-731, SCHURTER

IEC Appliance Inlet C14, Screw-on mounting, Front side, Quick-connect.

Features

  • Without sealing IP20
  • Protection class I

Applications

  • Suitable for appliances with protection class I
Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present No
Assembly screw mounting
Rated voltage UL/CSA 250 V
Connection plug-in connection
Power switch available No
Design straight
Pin number 3 pole
Type of locking Yes
IEC designation C14
Switch illuminated No
Rated current UL/CSA 15 A
Rated voltage IEC 250 V
Line filter present No
Product type panel plug
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
