3-135-552 | SCHURTER
6-fold socket F, snap-in, plug-in connection, black, 3-135-552
Unit Price (€ / pc.)
8.9607 € *
Available: 40 pcs.
Leadtime: 20 Weeks **
Total Price:
8.96 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9607 €
10 pcs.
7.9016 €
40 pcs.
7.4613 €
160 pcs.
7.0329 €
640 pcs.
6.5926 €
*incl. VAT plus shipping costs
**Subject to prior sale
Distribution unit, 3-135-552, Schurter

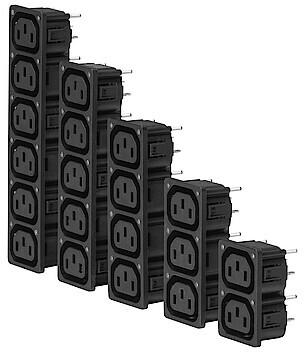

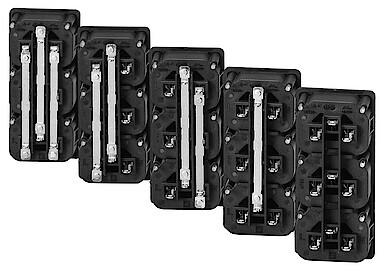

Strip block for snap-in mounting with 6 IEC appliance outlets F
Features
- Snap-in, front side
- Pre-assembled light pipe for status indication
- Compact solution for intelligent PDU applications
- Cord retention for cordsets with V-lock/Twylock/P-lock
Technical specifications
| Connection | plug-in connection | |
| Version | 6-fold socket | |
| Design | straight | |
| Colour | black | |
| IEC designation | F | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 1.5 mm | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 40 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
