3-135-295 | SCHURTER

Panel socket 7-fold F, 3 pole, snap-in, plug-in connection, black, 3-135-295

Order No.: 41F2029
EAN: 4099891580728
MPN:
3-135-295
4750-13222-73301-00
Series: 4750

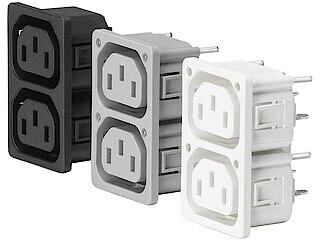

3-135-295 SCHURTER Device Connectors Image 1

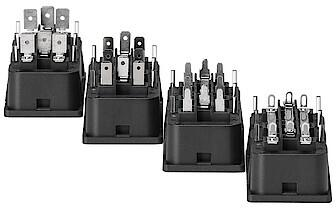

3-135-295 SCHURTER Device Connectors Image 2

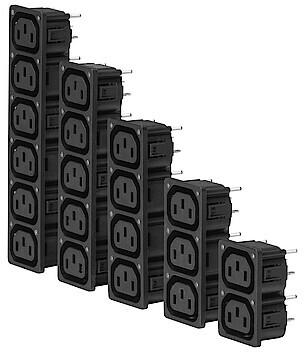

3-135-295 SCHURTER Device Connectors Image 3

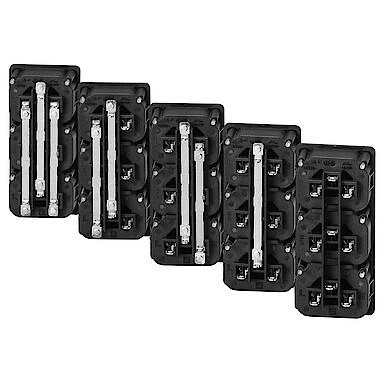

3-135-295 SCHURTER Device Connectors Image 4
Image may differ
Unit Price (€ / pc.)
9.8889 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
9.89 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8889 €
10 pcs.
8.9964 €
50 pcs.
8.2705 €
100 pcs.
7.4494 €
*incl. VAT plus shipping costs
Subject to prior sale

Distribution unit, 3-135-295, Schurter

Strip block for snap-in mounting with 7 IEC appliance outlets F

Features

  • Snap-in, front side
  • Pre-assembled light pipe for status indication
  • Compact solution for intelligent PDU applications
  • Cord retention for cordsets with V-lock/Twylock/P-lock
Technical specifications
Filter Property Value
Rated voltage UL/CSA 250 V
Rated voltage IEC 250 V
Pin number 3 pole
Power switch available No
Colour black
Rated current UL/CSA 15 A
Version 7-fold
Connection plug-in connection
Assembly snap-in
Fuse holder present No
Line filter present No
Pin temperature 70 °C
Panel thickness 1.5 mm
Design straight
Rated current IEC 10 A
IEC designation F
Type of locking No
Switch illuminated No
Product type panel socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin IN
Original Packaging Carton with 32 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
