3-134-902 | SCHURTER

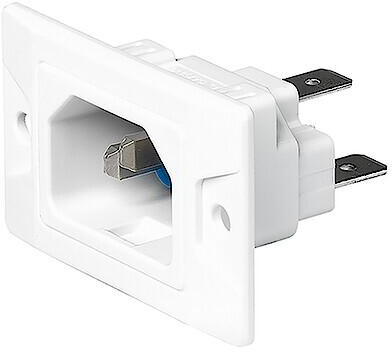

Panel plug C14, 3 pole, screw mounting, plug-in connection, white, 3-134-902

Order No.: 41F1222
EAN: 4099891580308
MPN:
3-134-902
Series: 6080
3-134-902 SCHURTER Device Connectors
Image may differ
Unit Price (€ / pc.)
13.5898 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
13.59 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5898 €
10 pcs.
12.5069 €
50 pcs.
11.3883 €
100 pcs.
10.2459 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug C14, 3-134-902, SCHURTER

IEC Appliance Inlet C14, Screw-on mounting, Front side, Quick-connect.

Features

  • With sealing IP54/IP67
  • Protection class I

Applications

  • Suitable for appliances with protection class I
Technical specifications
Filter Property Value
Rated voltage IEC 250 V
Pin temperature 70 °C
Power switch available No
Colour white
Assembly screw mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 15 A
Fuse holder present No
Design straight
IEC designation C14
Connection plug-in connection
Switch illuminated No
Product type panel plug
Pin number 3 pole
Type of locking Yes
Rated current IEC 10 A
Line filter present No
Logistics
Property Value
Customs tariff number 85366990
Original Packaging Carton with 20 pieces
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
