3-103-009 | SCHURTER

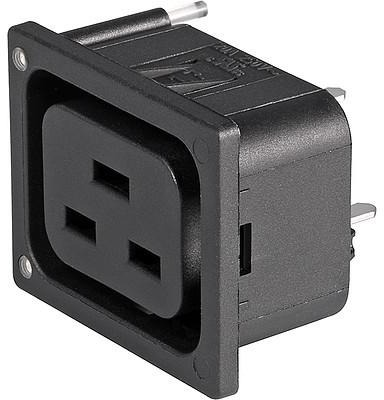

Panel socket J, 3 pole, snap-in, PCB connection, black, 3-103-009
Unit Price (€ / pc.)
2.3443 € *
Standard delivery time from the manufacturer is: 19 Weeks
Plug, 3-103-009, SCHURTER
IEC Appliance outlet J, Integrated light pipe, PCB-terminals.
Features
- Pre-assembled light pipes
- For PCB mounting
- Integrated Light Pipe for a space saving status indication
- Protection class: 1
Applications
- For smart PDU
- For UPS applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fuse holder present | No | |
| Rated current IEC | 16 A | |
| Rated voltage UL/CSA | 250 V | |
| Connection | PCB connection | |
| Rated voltage IEC | 250 V | |
| Pin temperature | 70 °C | |
| Switch illuminated | No | |
| Product type | panel socket | |
| IEC designation | J | |
| Assembly | snap-in | |
| Panel thickness | 1.5 mm | |
| Rated current UL/CSA | 20 A | |
| Type of locking | Yes | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Line filter present | No | |
| Design | straight | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Carton with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
