0909.0051 | SCHURTER
Panel socket 7-fold F, 3 pole, snap-in, solder connection, black, 0909.0051
Unit Price (€ / pc.)
11.6501 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
11.65 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6501 €
10 pcs.
10.6029 €
50 pcs.
9.7461 €
100 pcs.
8.7822 €
*incl. VAT plus shipping costs
Subject to prior sale
Distributor strip, 0909.0051, SCHURTER

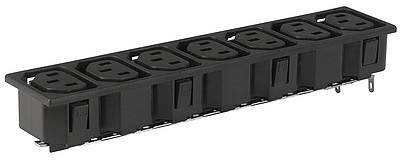

Strip block for Snap-in mounting with 7 IEC appliance outlets F.
Features
- Protection class: 1
- Housing material: Thermoplastic, black, UL 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | solder connection | |
| Rated current IEC | 10 A | |
| Pin number | 3 pole | |
| Product type | panel socket | |
| Rated current UL/CSA | 15 A | |
| Fuse holder present | No | |
| Switch illuminated | No | |
| Line filter present | No | |
| Type of locking | No | |
| IEC designation | F | |
| Power switch available | No | |
| Pin temperature | 70 °C | |
| Rated voltage UL/CSA | 250 V | |
| Version | 7-fold | |
| Assembly | snap-in | |
| Design | straight | |
| Rated voltage IEC | 250 V | |
| Panel thickness | 1.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
