0909.0031 | SCHURTER

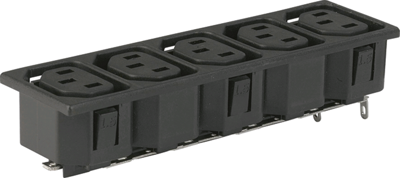

Distribution strip, 5-fold F, snap-in, solder connection, black, 0909.0031
Unit Price (€ / pc.)
9.6866 € *
Available: 29 pcs.
Leadtime: 24 Weeks **
Total Price:
9.69 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6866 €
10 pcs.
8.5204 €
50 pcs.
7.9492 €
150 pcs.
7.5922 €
500 pcs.
7.2114 €
*incl. VAT plus shipping costs
**Subject to prior sale
IEC appliance outlet strips, type Schurter 0909.
Compliant with IEC/EN 60320-2-2, for snap on mounting from the front; Housing material: thermoplastic, UL 94 V-0, black, 2-pole + ground contact, 10 A/250 VAC (UL/CSA 15 A/250 VAC). Connections: solder terminals. Degree of protection (IEC 60529): IP 30. Operating temperatures: –25 to +70 °C. Certifications: VDE, UL.

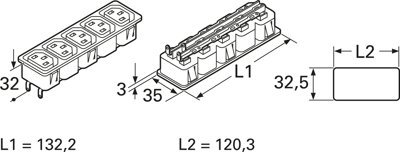

Technical attributes (type, number of panel inlets, dimensions L1/L2): 0909.0031, 5 appliance outlets, L1 123.2/L2 120.3 mm
Technical specifications
| Connection | solder connection | |
| Version | distribution strip, 5-fold | |
| Design | straight | |
| Colour | black | |
| IEC designation | F | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 1.5 mm | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
