4404.0097 | SCHURTER
Circuit breaker, 1 pole, T characteristic, 4 A, 48 V (DC), 240 V (AC), THT, PCB mounting, IP40
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

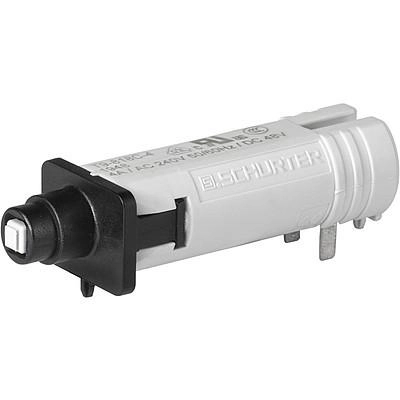

Thermal circuit breaker, 4404.0097, SCHURTER
The 4404.0097 is a thermal-magnetic circuit breaker for equipment and it is PCB mountable type with one pole.
Features
- Compact design
- Cycling trip-free release
- Different mounting possibilities
- Reset type
Applications
- Power tools
- Household appliances
- Power supplies
- Industrial appliances
Technical specifications
| Connection | THT | |
| Tripping characteristics | T | |
| Type of mounting | PCB mounting | |
| Actuator | push button | |
| Rated voltage (AC) | 240 V | |
| Rated voltage (DC) | 48 V | |
| Rated current | 4 A | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85362010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
