N 24 AG | SCHÜTZINGER
2.4 mm plug, solder connection, 0.5 mm², silver, N 24 AG
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.1063 € *
Available: 92 pcs.

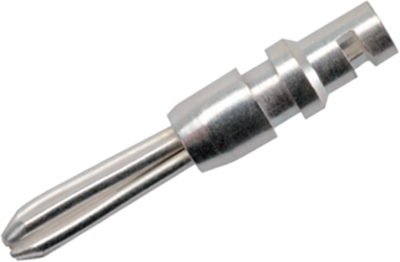

Plugs, 2.4 mm, type Schützinger N 24 AG.
Made of silver-plated brass, solder connection up to 0.75 mm²; Rated voltage: 30 VAC/60 VDC. Rated current: 10 A. Contact resistance: max. 3.0 mohm. Operating temperatures: –25 to +110 °C.
Type: N 24 AG, plug
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 2.4 mm | |
| Colour | silver | |
| Connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.5 mm² | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Touch safe | No | |

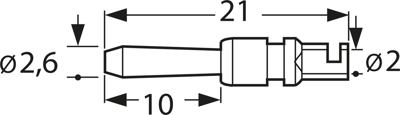

| Length | 21 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
