SDK 799 / SW | SCHÜTZINGER
Quick pressure clamp, black, 300 V, 16 A, 4 mm plug, nickel-plated, SDK 799 / SW
Order No.: 36F1900
EAN: 4099889681758
MPN:
SDK 799 / SW
99004206
Unit Price (€ / pc.)
12.3760 € *
Available: 15 pcs.
Leadtime: 1 Week **
Total Price:
12.38 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3760 €
20 pcs.
10.9004 €
40 pcs.
10.5315 €
160 pcs.
9.9246 €
500 pcs.
9.4724 €
*incl. VAT plus shipping costs
**Subject to prior sale

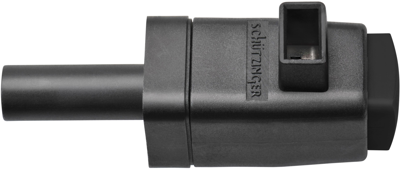

Safety quick release terminals with 4.0 mm safety plug pin, type Schützinger SDK 799/.
For fast and safe contacting of stranded wires and solid wires without tools, vibration-proof through integrated gill plate, easy release; Connection: plug-in. Rated voltage: 300 V, CAT II. Rated current: 16 A. Contact resistance: max. 5.0 mohm. Insulating parts: PA 6.6. Contact parts: nickel-plated. Operating temperatures: –25 to +90 °C.
Technical attributes (type, pushbutton color (type SDK 799/GNGE with yellow housing and green pushbutton)): SDK 799/SW, black
Technical specifications
| Connection | 4 mm plug | |
| Rated Voltage | 300 V | |
| Rated current | 16 A | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 55 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
