SDK 503 / BR | SCHÜTZINGER
Quick pressure clamp, brown, 30 VAC/60 VDC, 16 A, solder connection/cable lug, nickel-plated, SDK 503 / BR
Unit Price (€ / pc.)
7.5803 € *
Available: 8 pcs.
Total Price:
7.58 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5803 €
10 pcs.
7.2471 €
50 pcs.
6.9020 €
100 pcs.
6.6402 €
500 pcs.
6.3070 €
*incl. VAT plus shipping costs
Subject to prior sale

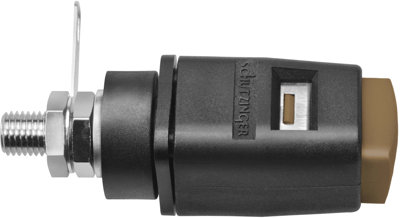

Quick pressure clamp, SDK 503 / BR, SCHÜTZINGER
Quick pressure clamp for quick and secure contacting of strands and wires, without tools, vibration-resistant thanks to inserted gill plate, easily detachable. Fully insulated, for metal front panels (0.8 to 5.0 mm thick).

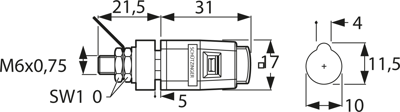

Technical specifications
| Colour | brown | |
| Installation diameter | 10 mm | |
| contact surface | nickel-plated | |
| Length | 52.5 mm | |
| Connection | solder connection/cable lug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 20 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
