POL 631 / SW | SCHÜTZINGER
Pole terminal, 4 mm, black, 1000 V, 63 A, screw connection, nickel-plated, POL 631 / SW
Order No.: 25F660
EAN: 4099889680782
MPN:
POL 631 / SW
99004030
Unit Price (€ / pc.)
19.1709 € *
Available: 26 pcs.
Leadtime: 1 Week **
Total Price:
19.17 € *
Price list
Quantity
Price per unit*
1 pcs.
19.1709 €
10 pcs.
16.8742 €
50 pcs.
15.7199 €
150 pcs.
15.0297 €
500 pcs.
14.2681 €
*incl. VAT plus shipping costs
**Subject to prior sale

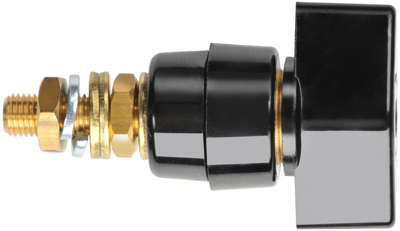

Binding post, 4.0 mm, type Schützinger POL 631.
For 4.0 mm plugs. With insulating rings and captive toggle; Rated voltage: 1000 V. Rated current: 63 A. Contact resistance: max. 0.4 mohm. Operating temperatures: –25 to +115 °C.
Type: POL 631, black

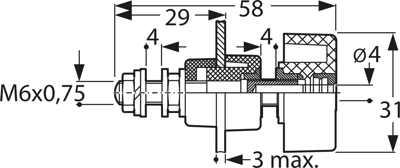

Technical specifications
| Connection | screw connection | |
| Rated Voltage | 1000 V | |
| Rated current | 63 A | |
| diameter | 4 mm | |
| Installation diameter | 31 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 58 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
