24571-684 | SCHROFF

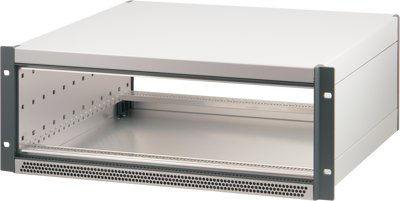

Name: 19 inch enclosure, 6/7 U, 84 HP, (W x H x D) 448.9 x 310.35 x 495.5 mm, aluminum, gray, 24571-684
Brand: SCHROFF
SKU: 85H4210
Price: 300.48 EUR
Availability: InStock

19 inch enclosure, 6/7 U, 84 HP, (W x H x D) 448.9 x 310.35 x 495.5 mm, aluminum, gray, 24571-684

Order No.: 85H4210

EAN: 4036088032752

MPN:

24571-684

Series: RatiopacPro Air

Image may differ

Key Specification:

Version enclosure, 6/7 U, 84 HP

Width 448.9 mm

Height 310.35 mm

Depth 495.5 mm

Material aluminum

Show 15 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

300.475 € *

Available: 2 pcs.

Leadtime: 2 Weeks **

Total Price:

300.48 € *

*incl. VAT plus shipping costs

**Subject to prior sale
