9-1393243-9 | Schrack

Relay, 2 Form A (N/O), 24 V (DC), 1.44 kΩ, 8 A, 400 V (AC), monostable, 9-1393243-9

Order No.: 30G6266
EAN: 4099889394832
MPN:
9-1393243-9
RT444024
Series: RT2

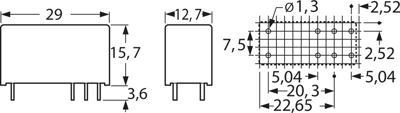

9-1393243-9 Schrack Industrial Relays Image 1

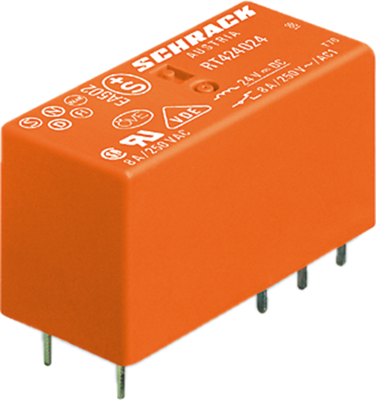

9-1393243-9 Schrack Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
3.7723 € *
Available in 5 Days: 1,654 pcs. - if ordered today
Total Price:
3.77 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7723 €
10 pcs.
3.5105 €
25 pcs.
3.2725 €
50 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale

Power relay, type TE Connectivity/Schrack RT2.

For DC or AC voltage, automatic soldering-proof or wash-proof; Grid: 5.0 mm. Air gap/creepage distance: min. 10 mm between contacts and coil. Contact type: 2 CO or 2 NO (single contact). Contact material: AgNi 90/10 or AgSnO. Rated voltage: 250 VAC. Switching voltage: max. 400 VAC. Rated current: 8.0 A. Breaking capacity: max. 2000 VA. Dielectric strength coil/contact: 5000 VRMS. Pick-up/release time: max. 8.0/6.0 ms. Relay protection class RT II (automatic soldering-proof), RT III (wash-proof). Overvoltage category: III. Ambient temperatures: –40 to +85 °C (DC coil), –40 to +70 °C (AC coil). Certifications: VDE, UL, CSA etc.

Suitable for automatic soldering lines, 2 x NO contacts made of AgNi 90/10.

Technical attributes (type, rated coil voltage, coil resistance (±10 %, at AC coil ±15%), rated coil power): 9-1393243-9, 24 VDC, 1440 ohm, 400 mW

Technical specifications
Filter Property Value
Grid 5 mm
switching current 8 A
Coil voltage (DC) 24 V
Contact type 2 Form A (N/O)
Contact material AgNi 90/10
Switching Voltage (AC) 400 V
Coil type monostable
Coil resistance 1.44 kΩ
Connection PCB connection
Logistics
Property Value
Country of origin US
Customs tariff number 85364900
Original Packaging Bar with 20 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
