Name: Relay 2 Form C (NO/NC), 12 V (DC), 360 Ω, 8 A, 400 V (AC), monostable, 6-1393243-3
Brand: Schrack
SKU: 30G6260
Price: 1.76 EUR
Availability: InStock

Product by Schrack at Bürklin Elektronik

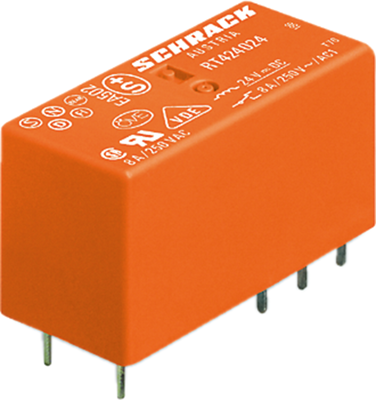

Power relay, type TE Connectivity/Schrack RT2.

For DC or AC voltage, automatic soldering-proof or wash-proof; Grid: 5.0 mm. Air gap/creepage distance: min. 10 mm between contacts and coil. Contact type: 2 CO or 2 NO (single contact). Contact material: AgNi 90/10 or AgSnO. Rated voltage: 250 VAC. Switching voltage: max. 400 VAC. Rated current: 8.0 A. Breaking capacity: max. 2000 VA. Dielectric strength coil/contact: 5000 VRMS. Pick-up/release time: max. 8.0/6.0 ms. Relay protection class RT II (automatic soldering-proof), RT III (wash-proof). Overvoltage category: III. Ambient temperatures: –40 to +85 °C (DC coil), –40 to +70 °C (AC coil). Certifications: VDE, UL, CSA etc.

Suitable for automatic soldering lines, 2 x CO contacts made of AgNi 90.

Technical attributes (type, rated coil voltage, coil resistance (±10 %, at AC coil ±15%), rated coil power): 6-1393243-3, 12 VDC, 360 ohm, 400 mW

1 item in 20 variations

Item description

Price list

Total

Relay 2 Form C (NO/NC), 24 V (DC), 1.44 kΩ, 8 A, 400 V (AC), monostable, 6-1393243-8

Order No.:

30G6262

Manufacturer:

Schrack

Manufacturer SKU

6-1393243-8

1 pcs.

2.7132 €

10 pcs.

2.5109 €

50 pcs.

2.3086 €

100 pcs.

2.1658 €

2.71 € *

Available: 1,070 pcs.

2 Form C (NO/NC)

24 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

1440 Ω

Relay 2 Form C (NO/NC), 230 V (AC), 32.5 kΩ, 8 A, 400 V (AC), monostable, 7-1393243-9

Order No.:

30G6310

Manufacturer:

Schrack

Manufacturer SKU

7-1393243-9

1 pcs.

4.4030 €

10 pcs.

4.1769 €

50 pcs.

3.9270 €

100 pcs.

3.5581 €

4.40 € *

Available: 3,540 pcs.

2 Form C (NO/NC)

400 V

5 mm

8 A

AgNi 90/10

PCB connection

230 V

32500 Ω

Relay 2 Form C (NO/NC), 12 V (DC), 360 Ω, 8 A, 400 V (AC), monostable, 6-1393243-3

Order No.:

30G6260

Manufacturer:

Schrack

Manufacturer SKU

6-1393243-3

1 pcs.

1.7612 €

10 pcs.

1.6303 €

50 pcs.

1.4994 €

100 pcs.

1.4042 €

1.76 € *

Available: 1,385 pcs.

2 Form C (NO/NC)

12 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

360 Ω

Relay 2 Form A (NO), 24 V (DC), 1.44 kΩ, 8 A, 400 V (AC), monostable, 9-1393243-9

Order No.:

30G6266

Manufacturer:

Schrack

Manufacturer SKU

9-1393243-9

1 pcs.

3.4153 €

10 pcs.

3.1535 €

50 pcs.

2.9036 €

100 pcs.

2.7251 €

3.42 € *

Available: 4 pcs.

Next delivery: 40 pcs. on 2023-10-04

2 Form A (NO)

24 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

1440 Ω

Relay 2 Form C (NO/NC), 24 V (DC), 1.44 kΩ, 8 A, 400 V (AC), monostable, 8-1393243-5

Order No.:

25G3070

Manufacturer:

Schrack

Manufacturer SKU

8-1393243-5

1 pcs.

7.5446 €

10 pcs.

6.9853 €

50 pcs.

6.4141 €

100 pcs.

6.0452 €

7.54 € *

Available: 68 pcs.

2 Form C (NO/NC)

24 V

400 V

8 A

AgNi 90/10

PCB connection

1440 Ω

Relay 2 Form C (NO/NC), 5 V (DC), 62 Ω, 8 A, 400 V (AC), monostable, 5-1393243-9

Order No.:

30G6259

Manufacturer:

Schrack

Manufacturer SKU

5-1393243-9

1 pcs.

5.2360 €

10 pcs.

4.8314 €

50 pcs.

4.4506 €

100 pcs.

4.1888 €

5.24 € *

Available: 12 pcs.

Next delivery: 80 pcs. on 2023-09-13

2 Form C (NO/NC)

5 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

62 Ω

Relay 2 Form C (NO/NC), 48 V (DC), 5.52 kΩ, 8 A, 400 V (AC), monostable, 1-1393243-1

Order No.:

25G3091

Manufacturer:

Schrack

Manufacturer SKU

1-1393243-1

1 pcs.

6.3903 €

10 pcs.

5.9024 €

50 pcs.

5.4264 €

100 pcs.

5.1170 €

6.39 € *

Available: 672 pcs.

2 Form C (NO/NC)

48 V

400 V

8 A

AgNi 90/10

PCB connection

5520 Ω

Relay 2 Form C (NO/NC), 24 V (DC), 1.44 kΩ, 8 A, 400 V (AC), monostable, 7-1415538-7

Order No.:

25G3054

Manufacturer:

Schrack

Manufacturer SKU

7-1415538-7

1 pcs.

3.9032 €

10 pcs.

3.6176 €

50 pcs.

3.3201 €

100 pcs.

3.1297 €

3.90 € *

Available: 168 pcs.

2 Form C (NO/NC)

24 V

400 V

8 A

AgNi 90/10

PCB connection

1440 Ω

Relay 2 Form C (NO/NC), 24 V (DC), 1.44 kΩ, 8 A, 400 V (AC), monostable, 1-1393243-0

Order No.:

30G6276

Manufacturer:

Schrack

Manufacturer SKU

1-1393243-0

1 pcs.

3.0702 €

10 pcs.

2.8441 €

50 pcs.

2.6061 €

100 pcs.

2.4514 €

3.07 € *

Available: 995 pcs.

Next delivery: 220 pcs. on 2023-09-12

2 Form C (NO/NC)

24 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

1440 Ω

Relay 2 Form C (NO/NC), 5 V (DC), 62 Ω, 8 A, 400 V (AC), monostable, 1393243-1

Order No.:

30G6272

Manufacturer:

Schrack

Manufacturer SKU

1393243-1

1 pcs.

3.2606 €

10 pcs.

3.0226 €

50 pcs.

2.7727 €

100 pcs.

2.6180 €

3.26 € *

Available: 155 pcs.

2 Form C (NO/NC)

5 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

62 Ω

Relay 2 Form C (NO/NC), 48 V (DC), 5.52 kΩ, 8 A, 400 V (AC), monostable, 7-1393243-0

Order No.:

25G3055

Manufacturer:

Schrack

Manufacturer SKU

7-1393243-0

30 pcs.

4.998 €

5.00 € *

Currently not in stock, we will order for you

2 Form C (NO/NC)

48 V

400 V

8 A

AgNi 90/10

PCB connection

5520 Ω

Relay 2 Form C (NO/NC), 230 V (AC), 32.5 kΩ, 8 A, 400 V (AC), monostable, 1-1393243-8

Order No.:

25G3096

Manufacturer:

Schrack

Manufacturer SKU

1-1393243-8

1 pcs.

7.0329 €

10 pcs.

6.5093 €

50 pcs.

5.9738 €

100 pcs.

5.6287 €

7.03 € *

Available: 2 pcs.

2 Form C (NO/NC)

400 V

8 A

AgNi 90/10

PCB connection

230 V

32500 Ω

Relay 2 Form C (NO/NC), 12 V (DC), 360 Ω, 8 A, 400 V (AC), monostable, 1393243-4

Order No.:

30G6274

Manufacturer:

Schrack

Manufacturer SKU

1393243-4

1 pcs.

3.5343 €

10 pcs.

3.2725 €

50 pcs.

2.9988 €

100 pcs.

2.8203 €

3.53 € *

Next delivery: 497 pcs. on 2023-05-23

2 Form C (NO/NC)

12 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

360 Ω

Relay 2 Form C (NO/NC), 115 V (AC), 360 Ω, 8 A, 400 V (AC), monostable, 7-1393243-8

Order No.:

30G6308

Manufacturer:

Schrack

Manufacturer SKU

7-1393243-8

1 pcs.

5.3312 €

10 pcs.

4.9266 €

50 pcs.

4.5339 €

100 pcs.

4.2602 €

5.33 € *

Available: 68 pcs.

2 Form C (NO/NC)

400 V

5 mm

8 A

AgNi 90/10

PCB connection

115 V

360 Ω

Relay 2 Form C (NO/NC), 110 V (DC), 28.8 kΩ, 8 A, 400 V (AC), monostable, 7-1393243-5

Order No.:

25G3057

Manufacturer:

Schrack

Manufacturer SKU

7-1393243-5

20 pcs.

5.0575 €

5.06 € *

Currently not in stock, we will order for you

2 Form C (NO/NC)

110 V

400 V

8 A

AgNi 90/10

PCB connection

28800 Ω

Relay 2 Form C (NO/NC), 12 V (DC), 360 Ω, 8 A, 400 V (AC), monostable, 7-1415538-8

Order No.:

25G3051

Manufacturer:

Schrack

Manufacturer SKU

7-1415538-8

1 pcs.

3.5700 €

10 pcs.

3.3082 €

50 pcs.

3.0345 €

100 pcs.

2.8560 €

3.57 € *

Available: 260 pcs.

2 Form C (NO/NC)

12 V

400 V

8 A

AgNi 90/10

PCB connection

360 Ω

Relay 2 Form C (NO/NC), 110 V (DC), 28.8 kΩ, 8 A, 400 V (AC), monostable, 1-1393243-4

Order No.:

25G3094

Manufacturer:

Schrack

Manufacturer SKU

1-1393243-4

40 pcs.

6.7116 €

6.71 € *

Currently not in stock, we will order for you

2 Form C (NO/NC)

110 V

400 V

8 A

AgNi 90/10

PCB connection

28800 Ω

Relay 2 Form A (NO), 12 V (DC), 360 Ω, 8 A, 400 V (AC), monostable, 9-1393243-7

Order No.:

30G6265

Manufacturer:

Schrack

Manufacturer SKU

9-1393243-7

1 pcs.

5.0575 €

10 pcs.

4.6767 €

50 pcs.

4.2959 €

100 pcs.

4.0341 €

5.06 € *

Next delivery: 84 pcs. on 2023-10-24

2 Form A (NO)

12 V

400 V

5 mm

8 A

AgNi 90/10

PCB connection

360 Ω

Relay 2 Form C (NO/NC), 24 V (AC), 350 Ω, 8 A, 400 V (AC), monostable, 7-1393243-6

Order No.:

25G3058

Manufacturer:

Schrack

Manufacturer SKU

7-1393243-6

30 pcs.

4.046 €

4.05 € *

Next delivery: 28 pcs. on 2023-09-12

2 Form C (NO/NC)

400 V

8 A

AgNi 90/10

PCB connection

24 V

350 Ω

Relay 2 Form C (NO/NC), 6 V (DC), 90 Ω, 8 A, 400 V (AC), monostable, 6-1393243-1

Order No.:

25G3049

Manufacturer:

Schrack

Manufacturer SKU

6-1393243-1

1 pcs.

5.4621 €

10 pcs.

5.0575 €

50 pcs.

4.6410 €

100 pcs.

4.3673 €

5.46 € *

Next delivery: 50 pcs. on 2023-07-11

2 Form C (NO/NC)

6 V

400 V

8 A

AgNi 90/10

PCB connection

90 Ω

*incl. VAT plus shipping costs

Country of origin	CN
Customs tariff number	85364900
Original Packaging	Bar with 20 pieces

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,88 €
Switzerland	1-2	16,40 €	19,52 €

	Connection	PCB connection
	Contact type	2 Form C (NO/NC)
	Contact material	AgNi 90/10
	Grid	5 mm
	Switching Voltage (AC)	400 V
	switching current	8 A
	Coil voltage (DC)	12 V
	Coil type	monostable
	Coil resistance	360 Ω
