4-1393224-9 | Schrack

Relay, 1 Form C (NO/NC), 24 V (DC), 2.35 kΩ, 8 A, 400 V (AC), monostable, 4-1393224-9

Order No.: 30G9152
EAN: 4099889396607
MPN:
4-1393224-9
RY211024
Series: RYII

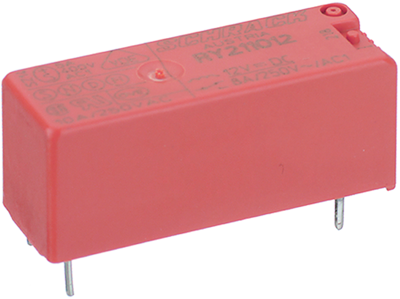

4-1393224-9 Schrack Industrial Relays Image 1
4-1393224-9 Schrack Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
3.0226 € *
Available: 20 pcs.
Available in 5 Days: 13,020 pcs. - if ordered today
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0226 €
10 pcs.
2.8084 €
25 pcs.
2.6180 €
50 pcs.
2.3800 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature Power relay, type TE Connectivity/Schrack RY II.

Suitable for automatic soldering. Reinforced insulation; Grid: 3.2 or 5.0 mm. Contact type: 1 x CO or 1 x NO. Contact material: AgNi 0.15 or AgCdO. Rated voltage: 250 VAC. Rated current: 8.0 A. Breaking capacity: max. 2000 VA. Contact/coil dielectric strength: 5000 VRMS. Coil power: 220 mW. Response/release time: 7.0/3.0 ms. Degree of protection: RT II. Overvoltage category: III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.

With 1 x CO, AgNi 0.15 contacts, type RY2110.

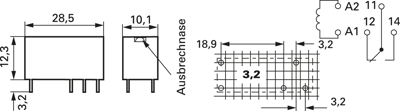

Technical attributes (type, rated voltage, coil resistance (±10 %), grid): 4-1393224-9, 24 VDC, 2350 ohm, 3.2 mm

Technical specifications
Filter Property Value
Coil voltage (DC) 24 V
switching current 8 A
Coil resistance 2.35 kΩ
Contact type 1 Form C (NO/NC)
Switching Voltage (AC) 400 V
Coil type monostable
Connection PCB connection
Contact material AgNi 0.15
Logistics
Property Value
Customs tariff number 85364190
Original Packaging Bar with 20 pieces
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
