4-1393224-6 | Schrack

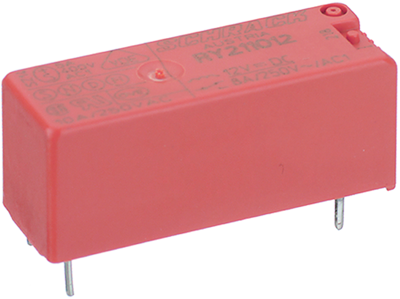

Relay 1 Form C (NO/NC), 12 V (DC), 627 Ω, 8 A, 400 V (AC), monostable, 4-1393224-6

default S
front S
default L
front L

Active

Total price
( 1.8802 € * / pcs.)
9.40 €
Available: 1,315 pcs.
Quantity
Price per unit*
5 pcs.
1.8802 €
10 pcs.
1.6898 €
50 pcs.
1.4875 €
100 pcs.
1.2614 €
*incl. VAT plus shipping costs
Show 2 variants
Description

Product by Schrack at Bürklin Elektronik

Miniature Power relay, type TE Connectivity/Schrack RY II.

Suitable for automatic soldering. Reinforced insulation; Grid: 3.2 or 5.0 mm. Contact type: 1 x CO or 1 x NO. Contact material: AgNi 0.15 or AgCdO. Rated voltage: 250 VAC. Rated current: 8.0 A. Breaking capacity: max. 2000 VA. Contact/coil dielectric strength: 5000 VRMS. Coil power: 220 mW. Response/release time: 7.0/3.0 ms. Degree of protection: RT II. Overvoltage category: III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.

With 1 x CO, AgNi 0.15 contacts, type RY2110.

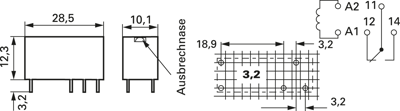

Technical attributes (type, rated voltage, coil resistance (±10 %), grid): 4-1393224-6, 12 VDC, 627 ohm, 3.2 mm

Technical specifications
Connection PCB connection
Contact type 1 Form C (NO/NC)
Contact material AgNi 0.15
Switching Voltage (AC) 400 V
switching current 8 A
Coil voltage (DC) 12 V
Coil type monostable
Coil resistance 627 Ω
Show similar products (0)
Logistics
Country of origin TW
Customs tariff number 85364190
Original Packaging Bar with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Accessory
Relay socket for Multimode Relay, 7-1393161-3
Order No.:
 30G9172
Manufacturer:
 Schrack
Manufacturer SKU
 7-1393161-3
1 pcs.
2.4157 €
10 pcs.
2.1777 €
50 pcs.
1.9040 €
100 pcs.
1.6184 €
2.42 € *
Available: 366 pcs.
*incl. VAT plus shipping costs
Variations
1 item in 2 variations
Item description
Price list
Total
Contact type
Coil voltage (DC)
Switching Voltage (AC)
switching current
Contact material
Connection
Coil resistance
Relay 1 Form C (NO/NC), 12 V (DC), 627 Ω, 8 A, 400 V (AC), monostable, 4-1393224-6
Order No.:
 30G9150
Manufacturer:
 Schrack
Manufacturer SKU
 4-1393224-6
5 pcs.
1.8802 €
10 pcs.
1.6898 €
50 pcs.
1.4875 €
100 pcs.
1.2614 €
9.40 € *
Available: 1,315 pcs.
1 Form C (NO/NC)
12 V
400 V
8 A
AgNi 0.15
PCB connection
627 Ω
Relay 1 Form C (NO/NC), 24 V (DC), 2.35 kΩ, 8 A, 400 V (AC), monostable, 4-1393224-9
Order No.:
 30G9152
Manufacturer:
 Schrack
Manufacturer SKU
 4-1393224-9
5 pcs.
1.9992 €
10 pcs.
1.7969 €
50 pcs.
1.5827 €
100 pcs.
1.3447 €
10.00 € *
Available: 10 pcs.
1 Form C (NO/NC)
24 V
400 V
8 A
AgNi 0.15
PCB connection
2350 Ω
*incl. VAT plus shipping costs
