ZB4BZ103TQ | Schneider Electric
ZB4BZ103TQ
Unit Price (€ / pc.)
13.2328 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.23 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2328 €
25 pcs.
12.6378 €
50 pcs.
12.1023 €
100 pcs.
11.4478 €
*incl. VAT plus shipping costs
Subject to prior sale

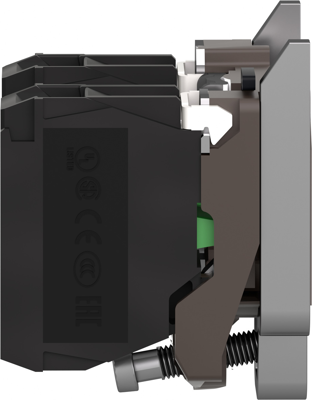

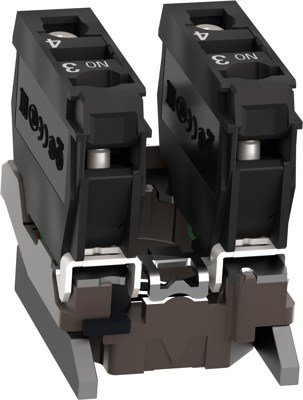

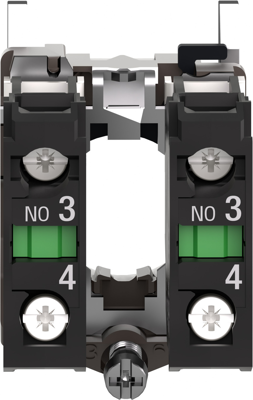

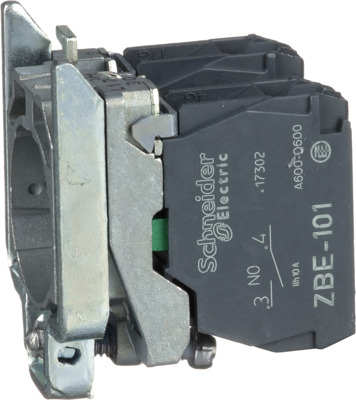

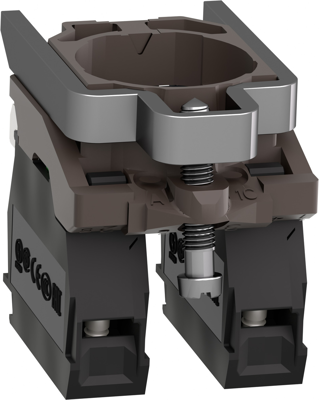

Complete body contact assembly, ZB4BZ103TQ, Schneider Electric
This body fixing collar is pre-mounted with a contact block Simply adding a head to this assembly will provide you with a complete ready-to-use push-button It protects operators from unexpected contact with live circuits thanks to its IP20 protection index It is sold by 100 units
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection: screw clamp, connector, Faston connector or spring terminal
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Latching switching function | 2 Form A (N/O) | |
| can be illuminated | No | |
| Contact material | silver | |
| Version | auxiliary switch block | |
| Isolation voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
