XESD2201 | Schneider Electric
Spring return contact block - 3 NO - front mounting, 40 mm centres
Unit Price (€ / pc.)
137.8496 € *
Available: 0 pcs.
Leadtime: On Request **

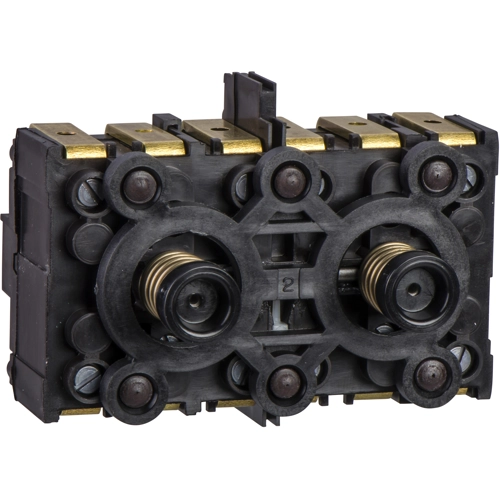

Auxiliary switch, XESD2201, Schneider Electric
This contact block is a separate component of the range of pendant control stations Harmony XAC. It consists in a double block 3-pole with 2 spring return operators mechanically interlocked (operator centres 40 mm). It features 3 NO functions and and screw clamp connection type. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XACB pendant control stations (front mounting). It weighs 200g. It is designed for power circuits simple speed applications.
Technical specifications
| Connection | screw connection | |
| Version | auxiliary switch | |
| can be illuminated | No | |
| Isolation voltage | 300 V | |
| Latching switching function | 3 Form A (N/O) |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
