47396 | Schneider Electric
Motor drive, 200-240 VAC, for circuit breaker, 47396
Unit Price (€ / pc.)
1,256.9494 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,256.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,256.9494 €

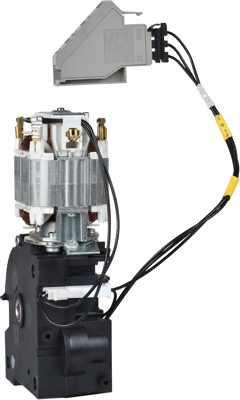

Motor drive, 47396, Schneider Electric
This is a motor mechanism (MCH) for fixed MasterPact NT circuit breakers. The motor mechanism module is used to remotely open and close the circuit breaker electrically. It is made up of a spring-charging motor equipped with an opening release and a closing voltage release. The spring-mechanism charging handle is used only as a backup if auxiliary power is absent. It is equipped with a 10A limit switch contact (CH) that signals the charged position of the mechanism. The operational control voltage is 200/240 VAC 50/60 Hz. The operating threshold is between 0.85xUn and 1.1xUn. The charging time is less than 3s. The maximum operating frequency should not exceed 3 cycles per minute.
Technical specifications
| Version | 200-240 VAC | |
| Suitable for | circuit breaker | |
| Accessory Type | motor drive |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
