NSYS3D8830P | Schneider Electric
Wall cabinet, (H x W x D) 800 x 800 x 300 mm, IP66, steel, light gray, NSYS3D8830P
NCNR (non cancelable / non returnable)

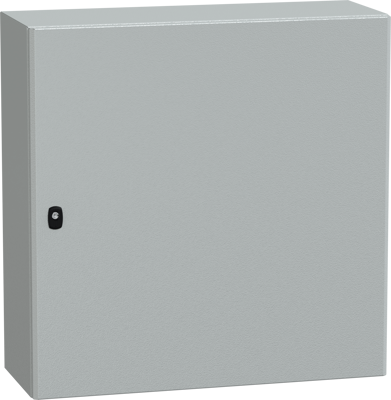

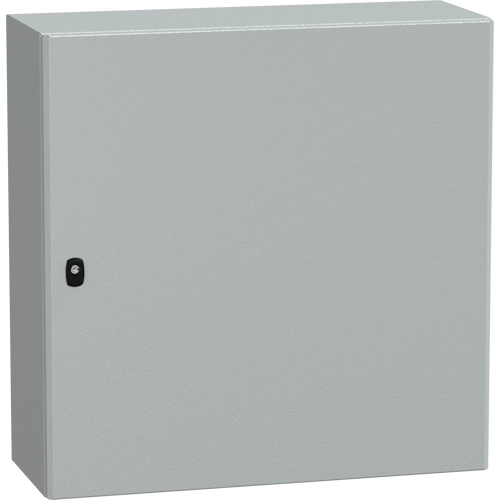

Wall mounted steel enclosure, NSYS3D8830P, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It is certified by DNV, BV, UL, GL, cUL and LR. The enclosure has a nominal height, width and depth of 800 mm, 800 mm and 300 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, two cable gland plates, a mounting plate and a door with lock the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plates can be removed for maintenance purposes, the mounting plate is made of galvanised steel and is fixed with a fixing element, the net weight of the enclosure is 42 kg It has a NEMA 4X/13 rating and a IK10 (IEC62262) and IP66 (IEC60529) rating for high impact and dust and water resistance This enclosure also features a single piece body and gutter-shaped front rail double sheet thickness for added strength the accessibility for operation is from the front.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 800 mm | |
| Width | 800 mm | |
| Depth | 300 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 94032080 |
| Country of origin | FR |
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
