NSYS3D6425T | Schneider Electric

Wall cabinet, (H x W x D) 600 x 400 x 250 mm, IP66, steel, light gray, NSYS3D6425T

Order No.: 02P2440
EAN: 3606480159282
MPN:
NSYS3D6425T
Series: PanelSet S3D
NSYS3D6425T Schneider Electric Switch Cabinets, server cabinets
Image may differ
Unit Price (€ / pc.)
167.7067 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
167.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
167.7067 €

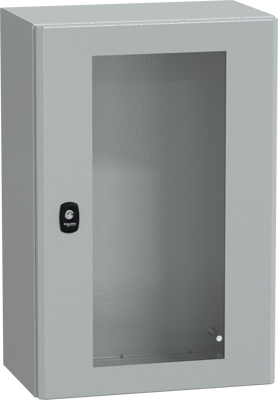

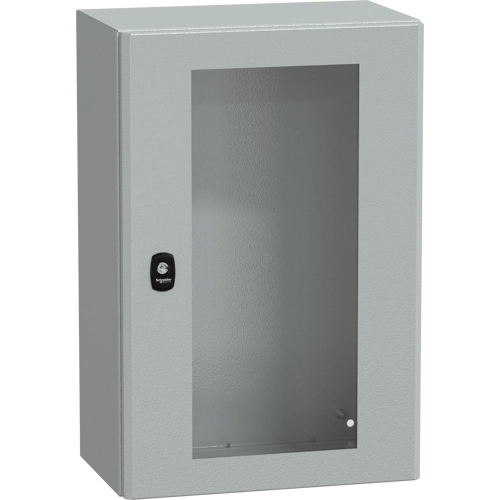

Wall mounted steel enclosure, NSYS3D6425T, Schneider Electric

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It can withstand high impact due to its IK08 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529). This enclosure has a nominal height, width and depth of 600 mm, 400 mm and 250 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish.

The enclosure consists of a body, one glazed door and one lock the door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible). The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 11,5 kg It is certified by cUL, LR, UL, GL, DNV and BV.

Technical specifications
Degree of protection (IP) IP66
Material steel
Product type wall cabinet
Colour light gray
Depth 250 mm
Width 400 mm
Height 600 mm
Logistics
Country of origin FR
Customs tariff number 85381000
Compliance
SVHC free Yes
RoHS conform Yes
Sustainable Yes
Date of RoHS guidelines 3/31/15
