Wall mounted steel enclosure, NSYS3D4420T, Schneider Electric

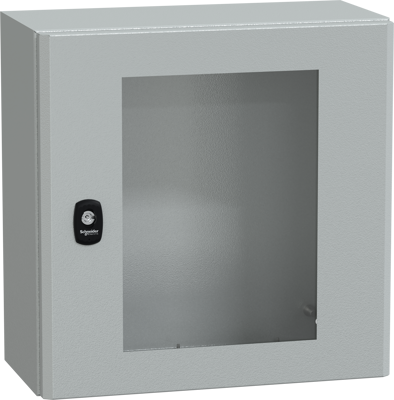

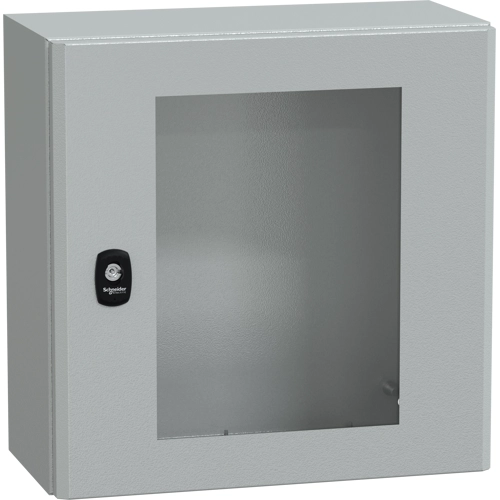

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It has an IK08 (IEC62262) rating and an IP66 rating (IEC60529) for protection against dust, water and other e x ternal elements. This enclosure has a nominal height, width and depth of 400 mm, 400 mm and 200 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish. The enclosure consists of a body, one glazed door, one lock and one cable gland plate the door can be opened up to 120°, allowing easy access to the equipment inside furthermore, it is possible to change the opening side of the door (reversible).
The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 7,1 kg It also has NEMA 4X/13 certification and meets IEC 62208 standards. This enclosure has a single piece body and a gutter-shaped front rail double sheet thickness for extra strength.
