NSYS3D4315T | Schneider Electric
Wall cabinet, (H x W x D) 400 x 300 x 150 mm, IP66, steel, light gray, NSYS3D4315T
NCNR (non cancelable / non returnable)

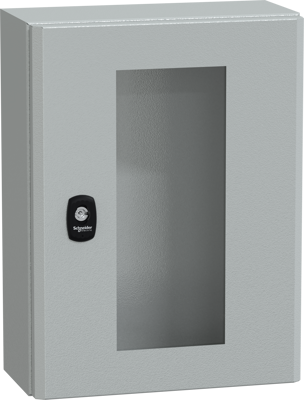

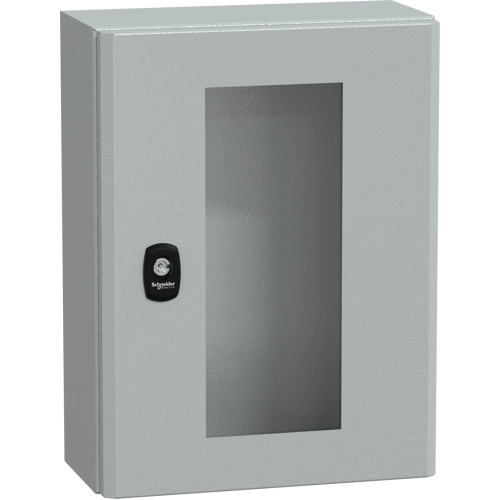

Wall mounted steel enclosure, NSYS3D4315T, Schneider Electric
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments. It has a NEMA 4 x /13 rating and is highly resistant to dust and water with an IP66 rating (IEC60529). It also has a high impact resistance due to its IK08 (IEC62262) rating. This enclosure has a nominal height, width and depth of 400 mm, 300 mm and 150 mm, respectively the enclosure is grey-coloured (RAL-7035) with an epoxy-polyester powder surface finish.
The enclosure consists of a body, one glazed door, one cable gland plate and a lock the door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible). The door has a three-point lock with a 3 mm double-bar insert. The door and the cable gland plate can be removed for maintenance purposes, the net weight of the enclosure is 4,94 kg.
| Filter | Property | Value |
|---|---|---|
| Product type | wall cabinet | |
| Height | 400 mm | |
| Width | 300 mm | |
| Depth | 150 mm | |
| Material | steel | |
| Colour | light gray | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
