NSYCVF850M400PF | Schneider Electric

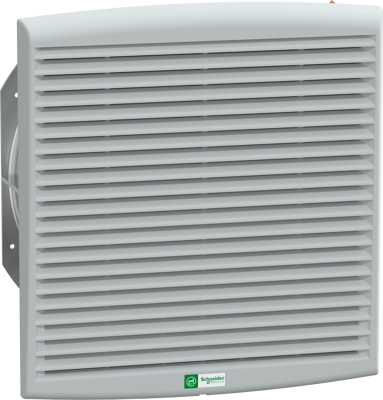

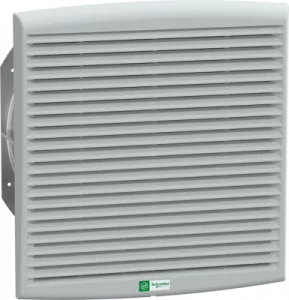

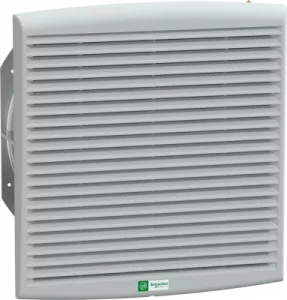

Fan, 230 V, 316 x 336 x 162 mm, 850 m³/h, 77 dB, ball bearing, Schneider Electric NSYCVF850M400PF

Order No.: 04P0405
EAN: 3606480151361
MPN:
NSYCVF850M400PF
Series: Climasys CV
NSYCVF850M400PF Schneider Electric Panel-Mount Fans
Image may differ
Unit Price (€ / pc.)
315.6951 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
315.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
315.6951 €

Fan, NSYCVF850M400PF, Schneider Electric

This product is a fan designed to provide reliable and efficient cooling. It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color. The fan has a ball bearing type and a maximum pressure of 170 Pa. It has a power range of 126 W 50 Hz and 126 W 60 Hz, and a free flow rate of 803 m3/h at 60 Hz and 931 m3/h at 50 Hz. It can be used in ambient air temperatures ranging from -15 to 60°C. It has a terminal block and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces. It has an IP54 degree of protection and a noise level of 75-77 dB. The cut-out dimensions of the fan are 291 x 291 mm. This fan also comes with an anti-insect filter included.

Features

  • Provides efficient and reliable cooling for various applications
  • Made of injected thermoplastic (ASA PC) for a reliable and efficient cooling system compliant to UL 94 V-0
  • Comes with a filter, outlet grille, and protective grilles
  • Features an anti-insect filter for added convenience
Technical specifications
Filter Property Value
Width 316 mm
Volume flow 850 m³/h
Degree of protection (IP) IP54
Type of bearing ball bearing
Rated voltage 230 V
Height 336 mm
Sound pressure level 77 db
Depth 162 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 84145925
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Sustainable Yes
SVHC free No
Date of RoHS guidelines 3/31/15
