RXM4AB1BDPVS | Schneider Electric
Relay, 4 Form C (NO/NC), 650 Ω, 6 A, 250 V (AC), RXM4AB1BDPVS
Order No.: 06P7297
EAN: 4099891587741
MPN:
RXM4AB1BDPVS
Unit Price (€ / pc.)
14.0658 € *
Available: 30 pcs.
Leadtime: On Request **
Total Price:
14.07 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0658 €
10 pcs.
13.6969 €
*incl. VAT plus shipping costs
**Subject to prior sale

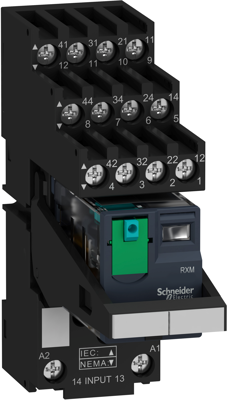

Miniature plug-in relay, RXM4AB1BDPVS, Schneider Electric
This miniature plug-in relay is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 6A, 24Vdc, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button. The miniature relay socket connection is by screw connector type.
Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls.
Features
- Fit to customer needs, coverage of most general control panel applications
- Convenient to use, easy status readiness trough mechanical indicator & LED; one-step lockable test button
- Safe to perform, product reliability, compliance with industrial standard and eco-design
- Easy to use
Technical specifications
| Contact type | 4 Form C (NO/NC) | |
| Contact material | AgNi | |
| Switching Voltage (AC) | 250 V | |
| switching current | 6 A | |
| Coil resistance | 650 Ω |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
