NSYTBS885 | Schneider Electric

ABS enclosure, (L x W x H) 89 x 89 x 54 mm, light gray (RAL 7035), IP66, NSYTBS885

Order No.: 02P2772
EAN: 3606480165214
MPN:
NSYTBS885
Series: PanelSet TBS
NSYTBS885 Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
8.0087 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.01 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0087 €
5 pcs.
7.6398 €
10 pcs.
7.3066 €
15 pcs.
6.9020 €
20 pcs.
6.5331 €
*incl. VAT plus shipping costs
Subject to prior sale

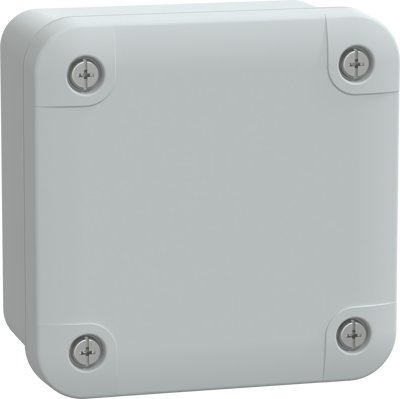

ABS enclosure, NSYTBS885, Schneider Electric

Thalassa TBS industrial ABS box with opaque cover H10. Interior is 80 x 80 x 65 mm. Exterior is 89 x 89 x 51 mm. Wall mounted enclosure, low plain cover. Outside sealed. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4 x ), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40 °C)/(-25 to 60 °C).

Technical specifications
Filter Property Value
Height 54 mm
Colour light gray
Degree of protection (IP) IP66
Material ABS
Width 89 mm
RAL number 7035
Length 89 mm
Logistics
Property Value
Customs tariff number 85381000
Country of origin HU
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
