ZB5AS964 | Schneider Electric
Emergency stop, key unlocking, mounting Ø 22 mm, unlit, ZB5AS964
Unit Price (€ / pc.)
47.2906 € *
Standard delivery time from the manufacturer is: 2 Weeks

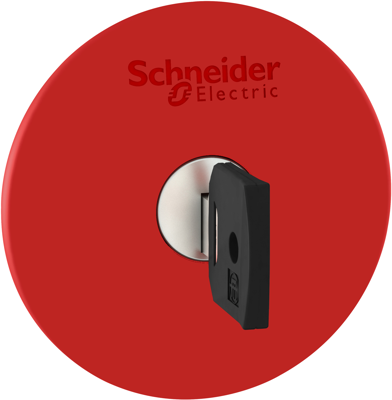

Front element, ZB5AS964, Schneider Electric
This Harmony XB5 emergency stop / shutdown 60mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 60 mm | |
| illuminated | No | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K | |
| Installation diameter | 22 mm | |
| Resetting | key unlocking |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Sustainable | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
