ZB5AS934 | Schneider Electric
Emergency stop, key unlocking, mounting Ø 22 mm, unlit, ZB5AS934
Unit Price (€ / pc.)
45.9816 € *
Available in 3 Days: 60 pcs. - if ordered today

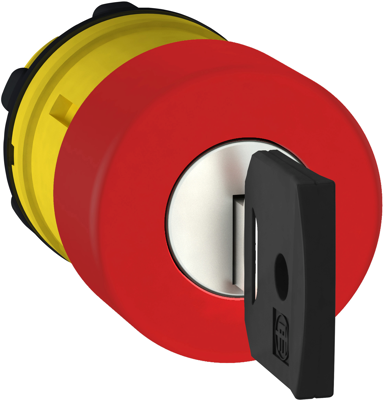

Mushroom pushbutton, ZB5AS934, Schneider Electric
This Harmony XB5 emergency stop / shutdown 30mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP66/IP67/IP69/IP69K | |
| Installation diameter | 22 mm | |
| Collar shape of the front frame | round | |
| Resetting | key unlocking | |
| Height | 39.5 mm | |
| Contact function | latching | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
