XB7NS9444 | Schneider Electric

Emergency stop, key unlocking, mounting Ø  22 mm, unlit, 2 Form B (N/C), XB7NS9444

Order No.: 27L6235
EAN: 3606480465642
MPN:
XB7NS9444
Series: Harmony XB7

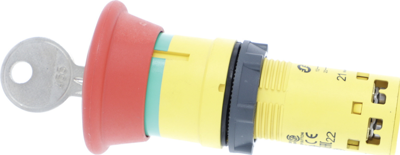

XB7NS9444 Schneider Electric Emergency Stop Image 1

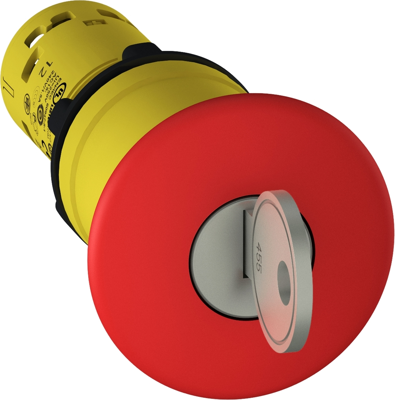

XB7NS9444 Schneider Electric Emergency Stop Image 2

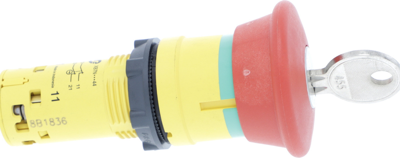

XB7NS9444 Schneider Electric Emergency Stop Image 3

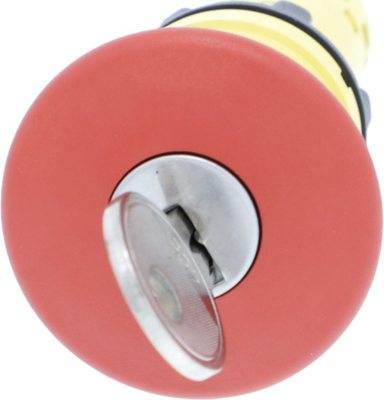

XB7NS9444 Schneider Electric Emergency Stop Image 4

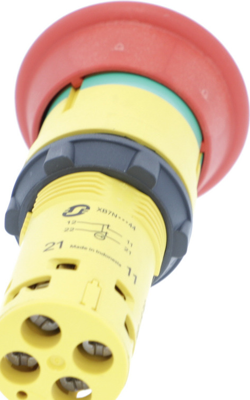

XB7NS9444 Schneider Electric Emergency Stop Image 5
Image may differ
Unit Price (€ / pc.)
33.0701 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
33.07 € *
Price list
Quantity
Price per unit*
1 pcs.
33.0701 €
5 pcs.
31.6302 €
10 pcs.
29.8928 €
*incl. VAT plus shipping costs
Subject to prior sale

Monolithic emergency stop, XB7NS9444, Schneider Electric

This Harmony XB7, Emergency stop 40mm mushroom head monolithic red push button operates with a latched key release (key no.455) mechanism and screw clamp terminals. This emergency stop is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Features

  • Finger safe screw clamp terminals
  • Class II conforming to IEC 60536
  • Complies with IEC;UL and CSA standards
  • CE approved
  • Wide range of operating temperature from -25°C to 70°C
Technical specifications
Filter Property Value
Latching switching function 2 Form B (N/C)
Resetting key unlocking
Degree of protection (IP) IP20/IP65
illuminated No
Collar shape of the front frame round
Height 40 mm
Installation diameter 22 mm
Type of labeling red
Logistics
Property Value
Country of origin ID
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
