18885 | Schneider Electric
Circuit breaker, 3 pole, MA characteristic, 40 A, 440 V (AC), screw connection, DIN rail, IP20
Unit Price (€ / pc.)
232.2642 € *
Available: 0 pcs.
Leadtime: On Request **

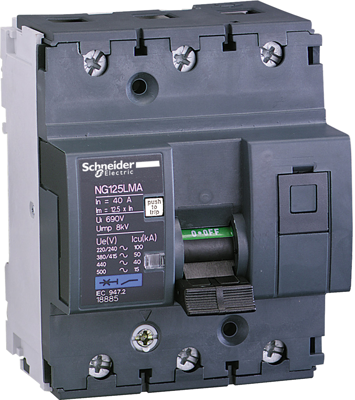

Device circuit breaker, 18885, SCHNEIDER
The 18885 is a low voltage circuit breaker. It is a 3P circuit breaker with 3 protected poles and 40 A in rated current and MA tripping curve. The rated short circuit breaking capacity goes up to 100 kA at 220 VAC to 240 VAC conforming to EN/IEC 60947-2 standard. This miniature circuit breaker protects circuits against short circuit and overload current. It is suitable for isolation in the industrial sector.
The fault tripping is indicated by a red mechanical state indicator light on the front face of the circuit breaker. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
Features
- Trip unit technology Magnetic
- High breaking capacity
- ON/OFF trip indicator
- Overvoltage category IV
- Protection of the circuit against short-circuit currents
Technical specifications
| Connection | screw connection | |
| Tripping characteristics | MA | |
| Type of mounting | DIN rail | |
| Actuator | toggle actuator | |
| Rated voltage (AC) | 440 V | |
| Rated current | 40 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
