RXG12P7 | Schneider Electric
Interface relay 1 Form C (NO/NC), 230 V (AC), 23500 Ω, 10 A, 230 V (AC), RXG12P7
Unit Price (€ / pc.)
8.9369 € *
Available in 3 Days: 294 pcs. - if ordered today
Total Price:
8.94 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9369 €
5 pcs.
8.5323 €
10 pcs.
8.1515 €
15 pcs.
7.6993 €
20 pcs.
7.2947 €
*incl. VAT plus shipping costs
Subject to prior sale

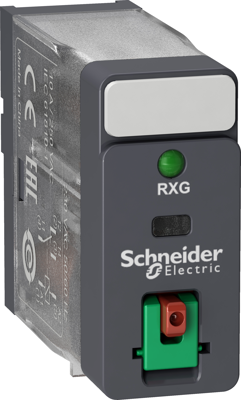

Interface Relay, RXG12P7, Schneider Electric
Pluggable interface relay in 13 mm width for mounting in the plug-in base by means of robust flat pins. One relay changer can be loaded up to 10 A. Mechanical display of the switch position and LED display of the control visible in the front. Test lever and test button can be operated without tools to test the switchover or for inching operation. Transparent side cover for visual inspection of the contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 230 V | |
| Rated current | 10 A | |
| Status display | LED | |
| Coil resistance | 23500 Ω | |
| Coil voltage (AC) | 230 V | |
| Contact type | 1 Form C (NO/NC) | |
| Connection | plug-in connection | |
| Degree of protection (IP) | IP40 | |
| Product type | interface relay | |
| Contact material | silver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
