RXG12ED | Schneider Electric

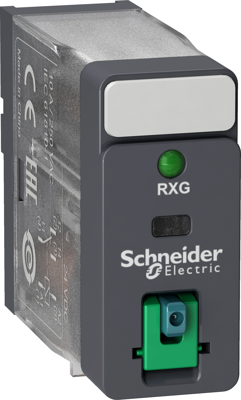

Interface relay 1 Form C (NO/NC), 4400 Ω, 10 A, 48 V (DC), RXG12ED
Unit Price (€ / pc.)
6.3665 € *
Available: 0 pcs.
Leadtime: On Request **
Plug-in relay socket, RXG12ED, Schneider Electric
This Zelio RXG plug-in relay socket has a coil control voltage of 48V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use. It also offers lockable test button and LED indicator. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere thanks to its 16mm width. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
Technical specifications
| Connection | plug-in connection | |
| Version | interface relay | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2In2O3 | |
| Rated voltage (DC) | 48 V | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP40 | |
| Coil resistance | 4400 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
