RXG12BD | Schneider Electric
Interface relay 1 Form C (NO/NC), 24 V (DC), 1100 Ω, 10 A, 24 V (DC), RXG12BD
Unit Price (€ / pc.)
6.8425 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8425 €
5 pcs.
6.5212 €
10 pcs.
6.2356 €
15 pcs.
5.8905 €
20 pcs.
5.5811 €
*incl. VAT plus shipping costs
Subject to prior sale

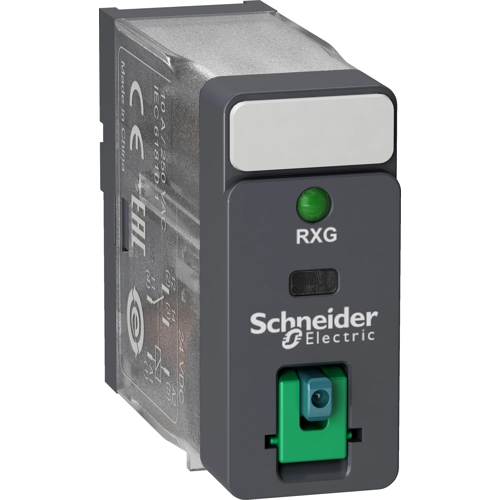

Pluggable interface relay, RXG12BD, Schneider Electric
Pluggable interface relay in 13 mm width for mounting in the plug-in socket by means of robust flat pins. One relay changer can be loaded up to 10 A. Mechanical display of the switch position and LED display of the control unit visible in the front. Test lever and test button can be operated without tools to test the switchover or for inching operation. Transparent side cover for visual inspection of the contact.
Technical data
- Width: 13 mm
- Height:
- 34 mm
- Protection class (IP): IP40
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | silver | |
| Coil resistance | 1100 Ω | |
| Degree of protection (IP) | IP40 | |
| Status display | LED | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 10 A | |
| Connection | plug-in connection | |
| Rated voltage (DC) | 24 V | |
| Coil voltage (DC) | 24 V | |
| Product type | interface relay |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
