RXG11B7 | Schneider Electric

Interface relay 1 Form C (NO/NC), 24 V (AC), 260 Ω, 10 A, 30 V (DC), 250 V (AC), RXG11B7

Order No.: 04P6094
EAN: 3606480688553
MPN:
RXG11B7
Series: Zelio Relay RXG
RXG11B7 Schneider Electric Coupling Relays
Image may differ
Unit Price (€ / pc.)
7.5684 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.5684 €

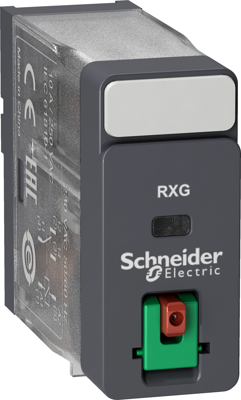

Pluggable interface relay, RXG11B7, Schneider Electric

Pluggable interface relay in 13 mm width for mounting in the plug-in socket by means of robust flat pins. One relay changer can be loaded up to 10 A. Mechanical display of the switch position visible in the front (no LED display)

Technical data

  • Height: 34 mm
  • Complete unit with base: false
  • Width: 13 mm
  • With forcibly guided contacts: true
Technical specifications
Filter Property Value
Contact material AgSnO2In2O3
Coil resistance 260 Ω
Degree of protection (IP) IP40
Contact type 1 Form C (NO/NC)
Rated current 10 A
Rated voltage (AC) 250 V
Connection plug-in connection
Rated voltage (DC) 30 V
Coil voltage (AC) 24 V
Product type interface relay
Logistics
Property Value
Customs tariff number 85364900
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
