XACA67131 | Schneider Electric
Pendant pushbutton, 6 pushbutton, 1 emergency stop/emergency off button, 6 Form A (N/O) + 3 Form B (N/C), latching, XACA67131
Unit Price (€ / pc.)
223.3511 € *
Available: 2 pcs.
Leadtime: 2 Weeks **

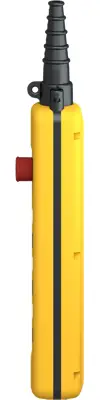

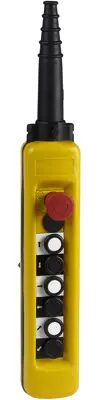

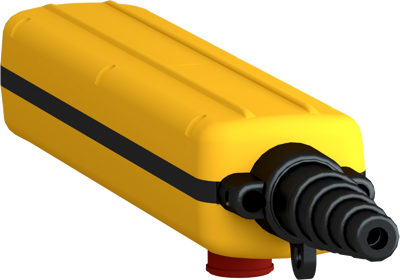

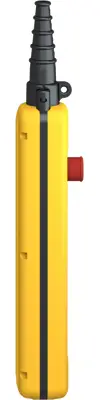

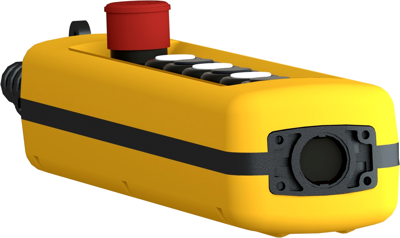

Pendant control station, XACA67131, Schneider Electric
This Harmony XACA67131 is a pendant control station with 6 push buttons and Emergency stop for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Technical specifications
| Version | 6 pushbutton, 1 emergency stop/emergency off button | |
| Colour | yellow | |
| Shell size | 107 x 80 x 500 mm | |
| Contact function | latching | |
| Latching switching function | 6 Form A (N/O) + 3 Form B (N/C) | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
