LA1SK02 | Schneider Electric

Auxiliary switch block, 10 A, 690 V, 2 Form B (N/C), screw connection, LA1SK02

Order No.: 03P0557
EAN: 3389110573947
MPN:
LA1SK02
Series: TeSys SK
LA1SK02 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
10.2459 € *
Available in 3 Days: 20 pcs. - if ordered today
Total Price:
10.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.2459 €

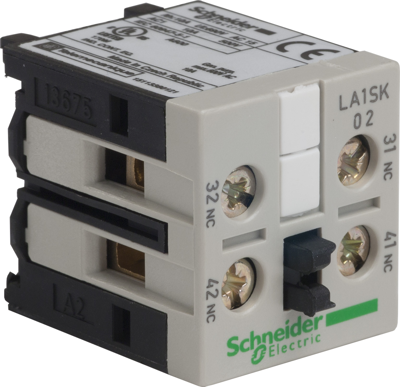

Auxiliary switch block, LA1SK02, Schneider Electric

TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 2NC contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection screw connection
Version auxiliary switch block
Degree of protection (IP) IP2x
Assembly front mounting
Latching switching function 2 Form B (N/C)
Rated current 10 A
Rated Voltage 690 V
Logistics
Property Value
Customs tariff number 85389099
Country of origin CZ
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
