M9U21220 | Schneider Electric

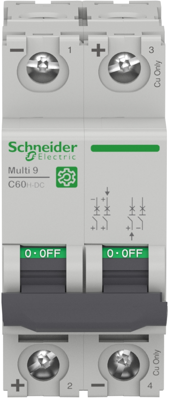

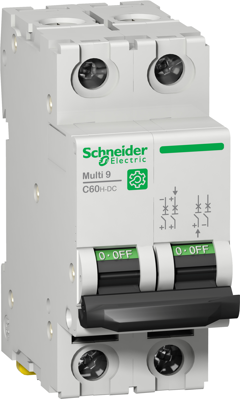

Circuit breaker, 2 pole, C Curve, 20 A, 500 V, DIN rail
Active
Product by Schneider Electric at Bürklin Elektronik
Circuit breaker, M9U21220, SCHNEIDER
The M9U21220 is a low voltage miniature circuit breaker dedicated to direct current. It is a 2P circuit breaker with 2 protected poles and 20 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20 kA at 220 V DC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
| Tripping characteristics | C | |
| Rated Voltage | 500 V | |
| Rated current | 20 A | |
| Assembly | DIN rail | |
| Rated voltage (DC) | 500 V | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP20 |
| Country of origin | CN |
| Customs tariff number | 85362010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
