M9F52363 | Schneider Electric
Circuit breaker, 3 pole, C Curve, 63 A, 240 V, DIN rail
Active
Product by Schneider Electric at Bürklin Elektronik

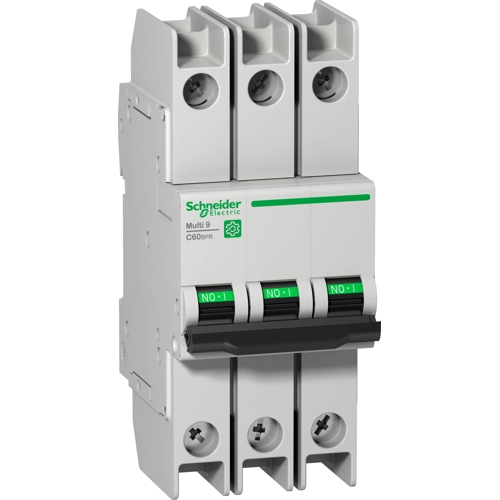

Circuit breaker, M9F52363, SCHNEIDER
The M9F52363 is a low voltage miniature circuit breaker. It is a 3P circuit breaker with 3 protected poles and 63 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
| Tripping characteristics | C | |
| Rated Voltage | 240 V | |
| Rated current | 63 A | |
| Assembly | DIN rail | |
| Rated voltage (AC) | 440 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
| Country of origin | FR |
| Customs tariff number | 85362010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
