M9F22150 | Schneider Electric
Circuit breaker, 1 pole, C Curve, 50 A, 277 V, DIN rail
Unit Price (€ / pc.)
20.9202 € *
Available: 0 pcs.
Leadtime: On Request **

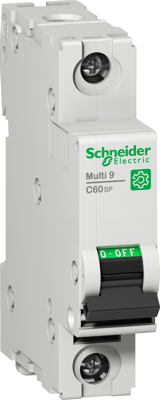

Circuit breaker, M9F22150, SCHNEIDER
The M9F22150 is a low voltage miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 50 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
Technical specifications
| Tripping characteristics | C | |
| Rated Voltage | 277 V | |
| Rated current | 50 A | |
| Assembly | DIN rail | |
| Rated voltage (AC) | 415 V | |
| Rated voltage (DC) | 60 V | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
