A9N61501 | Schneider Electric

Circuit breaker, 1 pole, C Curve, 1 A, 250 V, DIN rail, A9N61501

Order No.: 01P8236
EAN: 3606480424038
MPN:
A9N61501
Series: Acti 9
A9N61501 Schneider Electric Circuit Protectors
Image may differ
Unit Price (€ / pc.)
59.9641 € *
Available in 3 Days: 1 pcs. - if ordered today
Total Price:
59.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
59.9641 €

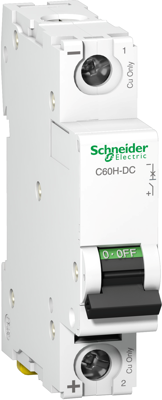

Circuit breaker, A9N61501, SCHNEIDER

The A9N61501 is a low voltage direct current miniature circuit breaker. It is a 1P circuit breaker with 1 protected pole and 1 A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10 kA at 220 V DC. This miniature circuit breaker protects circuits against short circuit and overload current.

Features

  • High breaking capacity
  • High rated impulse withstand voltage
  • High mechanical durability
  • High electrical durability
Technical specifications
Filter Property Value
Product type circuit breaker
Degree of protection (IP) IP20
Pin number 1 pole
Assembly DIN rail
Rated current 1 A
Tripping characteristics C
Rated Voltage 250 V
Logistics
Property Value
Customs tariff number 85362010
Country of origin CN
Compliance
Property Value
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
