A9F93416 | Schneider Electric

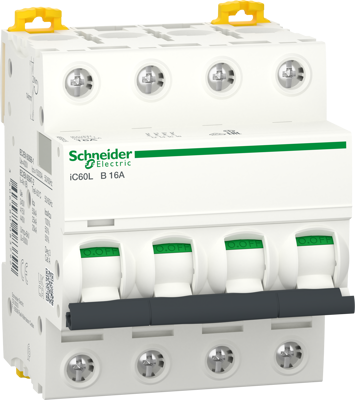

Circuit breaker, 4 pole, B Curve, 16 A, 400 V, DIN rail, A9F93416

Order No.: 01P7766
EAN: 3606480083792
MPN:
A9F93416
Series: Acti 9
A9F93416 Schneider Electric Circuit Protectors
Image may differ
Unit Price (€ / pc.)
188.5793 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
188.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
188.5793 €

Circuit breaker, A9F93416, SCHNEIDER

The A9F93416 is a low voltage miniature circuit breaker. It is a 4P circuit breaker with 4 protected poles and 16 A In rated current and B tripping curve. The rated short circuit breaking capacity goes up to 50 kA at 220 V AC to 240 V AC. This miniature circuit breaker protects circuits against short circuit and overload current.

Features

  • High breaking capacity
  • High rated impulse withstand voltage
  • High mechanical durability
  • High electrical durability
Technical specifications
Filter Property Value
Product type circuit breaker
Degree of protection (IP) IP20
Pin number 4 pole
Assembly DIN rail
Rated current 16 A
Tripping characteristics B
Rated Voltage 400 V
Logistics
Property Value
Customs tariff number 85362010
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
