VBF5 | Schneider Electric

Main switch, rotary actuator, 3 pole, 125 A, (W x H) 90 x 125 mm, screw mounting, VBF5

Order No.: 04P8204
EAN: 3389110804676
MPN:
VBF5
VBF5 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
136.0051 € *
Available in 3 Days: 35 pcs. - if ordered today
Total Price:
136.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
136.0051 €

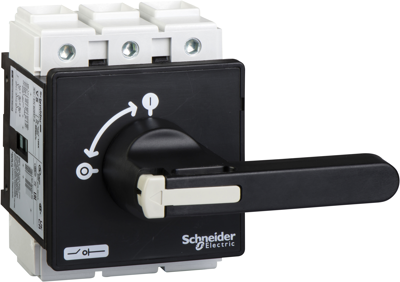

Main switch, VBF5, Schneider Electric

TeSys Vario switch disconnector for door mounting, 3 poles, 125 A/690 V, for motor switching applications up to 37kW@400V AC-23. Complete unit composed of a switch body V5, a black handle with black 90x90mm front plate KAF3PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Width 90 mm
Product type main switch
Degree of protection (IP) IP65
Pin number 3 pole
Height 125 mm
Assembly screw mounting
Actuator rotary actuator
Permanent current 125 A
Logistics
Property Value
Customs tariff number 85362010
Country of origin CZ
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
