VBF01GE | Schneider Electric
Main switch, Rotary actuator, 3 pole, 16 A, (L x W x H) 131 x 90 x 146 mm, VBF01GE
Active
Product by Schneider Electric at Bürklin Elektronik

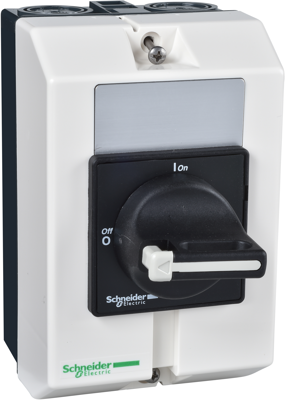

Main switch, VBF01GE, Schneider Electric
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 16A 690V, for main switching in motor applications up to 5.5kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V01 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
| Actuator | Rotary actuator | |
| Width | 90 mm | |
| Permanent current | 16 A | |
| Height | 146 mm | |
| Length | 131 mm | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 |
| Country of origin | CZ |
| Customs tariff number | 85371098 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
