VBF4GE | Schneider Electric

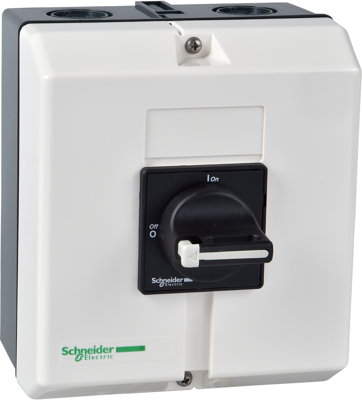

Main switch, rotary actuator, 3 pole, 63 A, (W x H x D) 157 x 180 x 152 mm, VBF4GE
Unit Price (€ / pc.)
98.5439 € *
Available in 3 Days: 71 pcs. - if ordered today
Main switch, VBF4GE, Schneider Electric
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 63 A 690 V, for main switching in motor applications up to 30kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V4 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | main switch | |
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Width | 157 mm | |
| Height | 180 mm | |
| Depth | 152 mm | |
| Permanent current | 63 A | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85371098 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
